3D Five-Axis Laser Welder
Robotic five-axis laser welding reaches every angle on complex 3D components with repeatable quality.
Overview

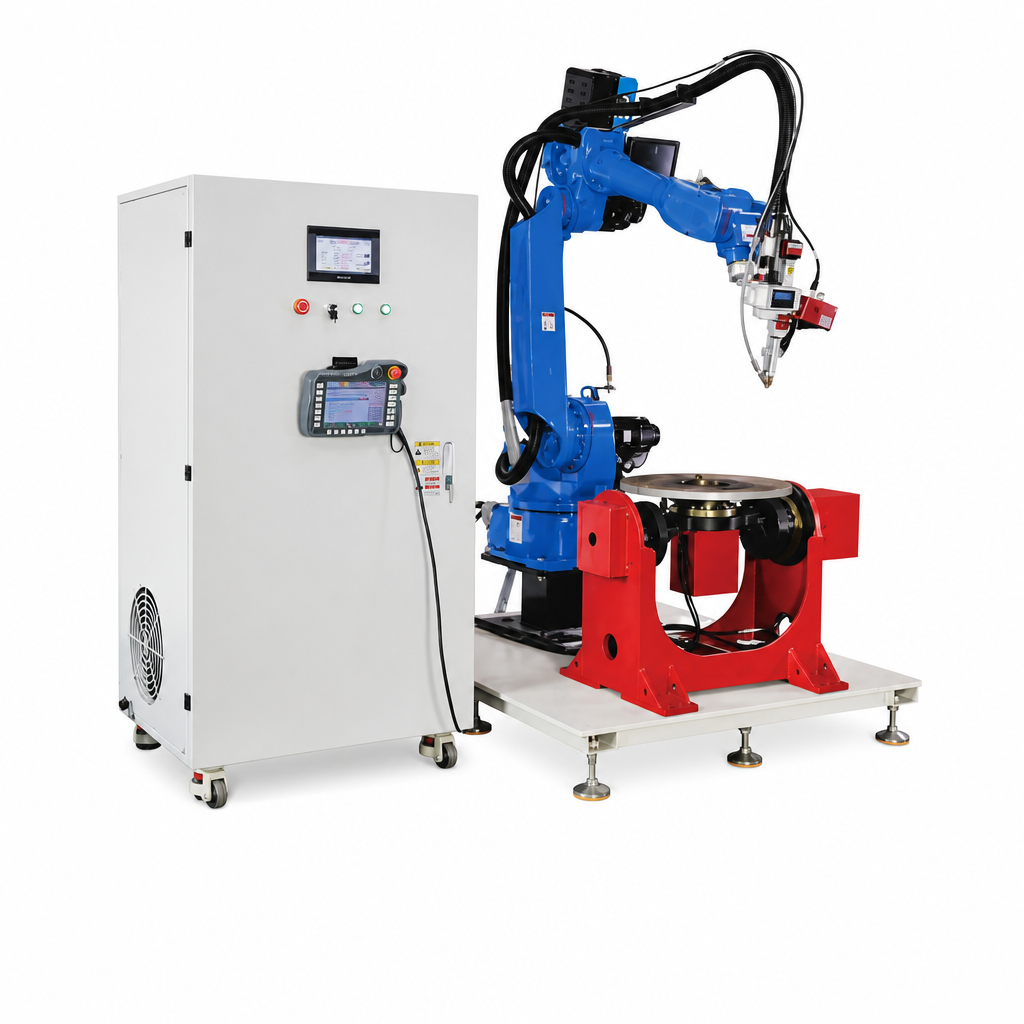

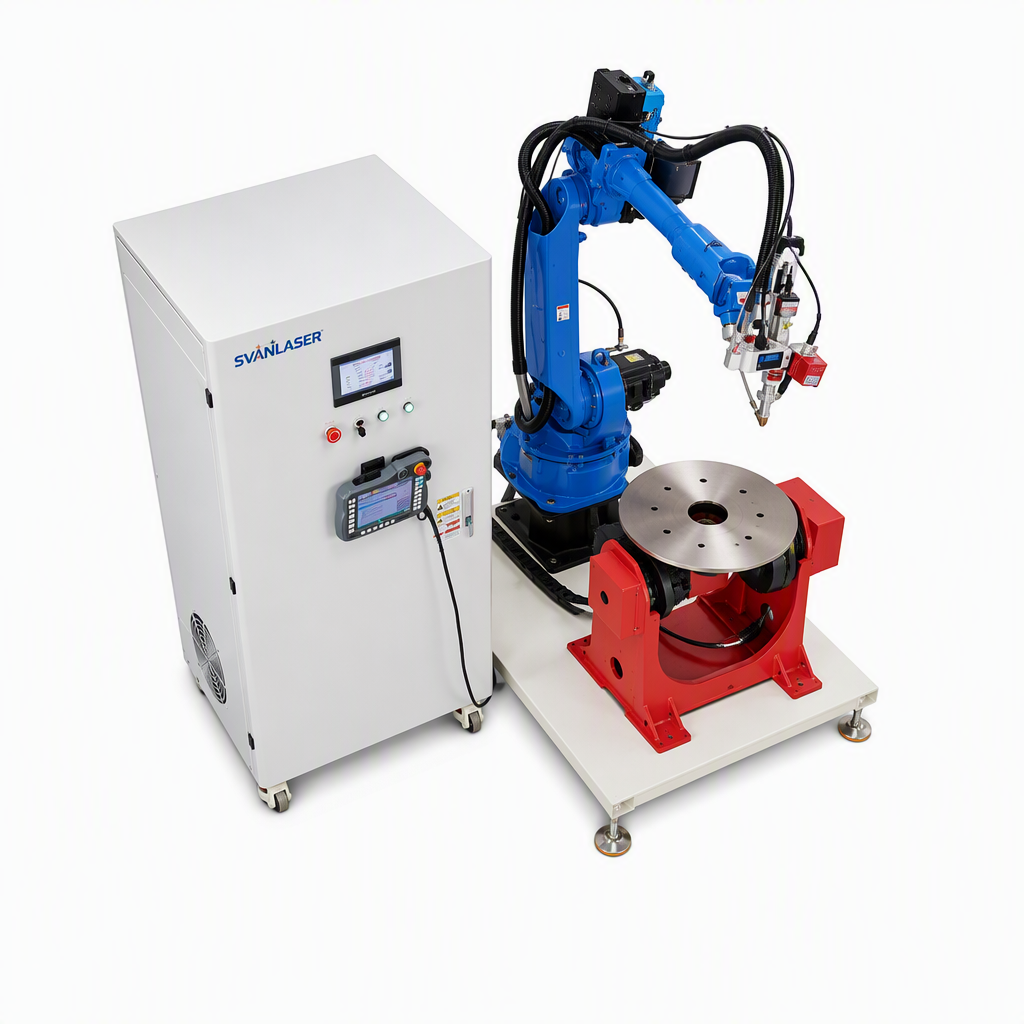

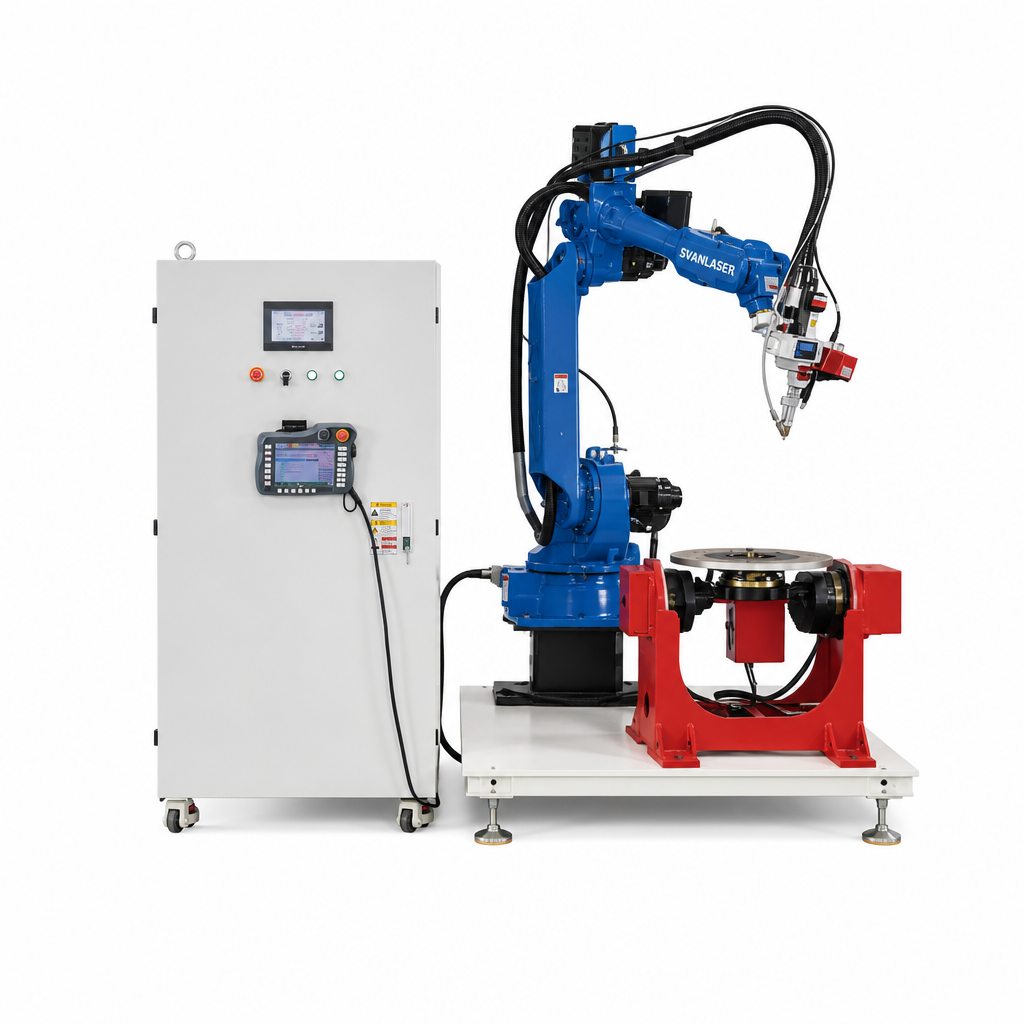

The SV-W Series uses a robotic arm to perform barrier-free five-axis welding on three-dimensional parts. Laser welding delivers high speed with a small heat-affected zone, minimal distortion and smooth, presentable weld seams. Because the process requires no consumables and no routine maintenance, running costs stay low across long production programmes in aerospace, automotive and equipment manufacturing.
Specifications
| Machine model | SV-W Series |
| Structure | Robotic arm, three-dimensional five-axis |
| X/Y axis positioning accuracy | ±0.03mm/m (±0.0004 in/ft) |
| Power supply | AC220V / 380V, 50–60Hz |
| Consumables | None required |
| Maintenance | Maintenance-free operation |
| Laser power and robot configuration | Configured to workpiece and production requirements |
Key Features
- ✓Robotic arm enables barrier-free welding — reaches complex three-dimensional joints from any approach angle.
- ✓High welding speed with a small heat-affected zone — minimal deformation on finished assemblies.
- ✓Smooth, aesthetic weld seams — reduces or removes downstream grinding and finishing.
- ✓No consumables, maintenance-free — highly efficient and stable in continuous production.
- ✓Simple to operate — reduces labour costs and improves factory image.
- ✓Broad industry coverage — from aerospace structures to consumer appliances.
Applications
Industries: aerospace, automotive and shipbuilding, machinery manufacturing, elevator manufacturing, advertising production, home appliance manufacturing, medical devices, hardware decoration, fitness equipment, metal contract processing.
Materials: stainless steel, carbon steel, aluminium alloy and other weldable metals.
Typical parts: three-dimensional welded assemblies, curved seams, structural components where appearance and distortion control are critical.
