Coil-Fed Cutting Line
Uncoil, level and cut blanks in one continuous line — direct from coil to finished sheet.
Overview

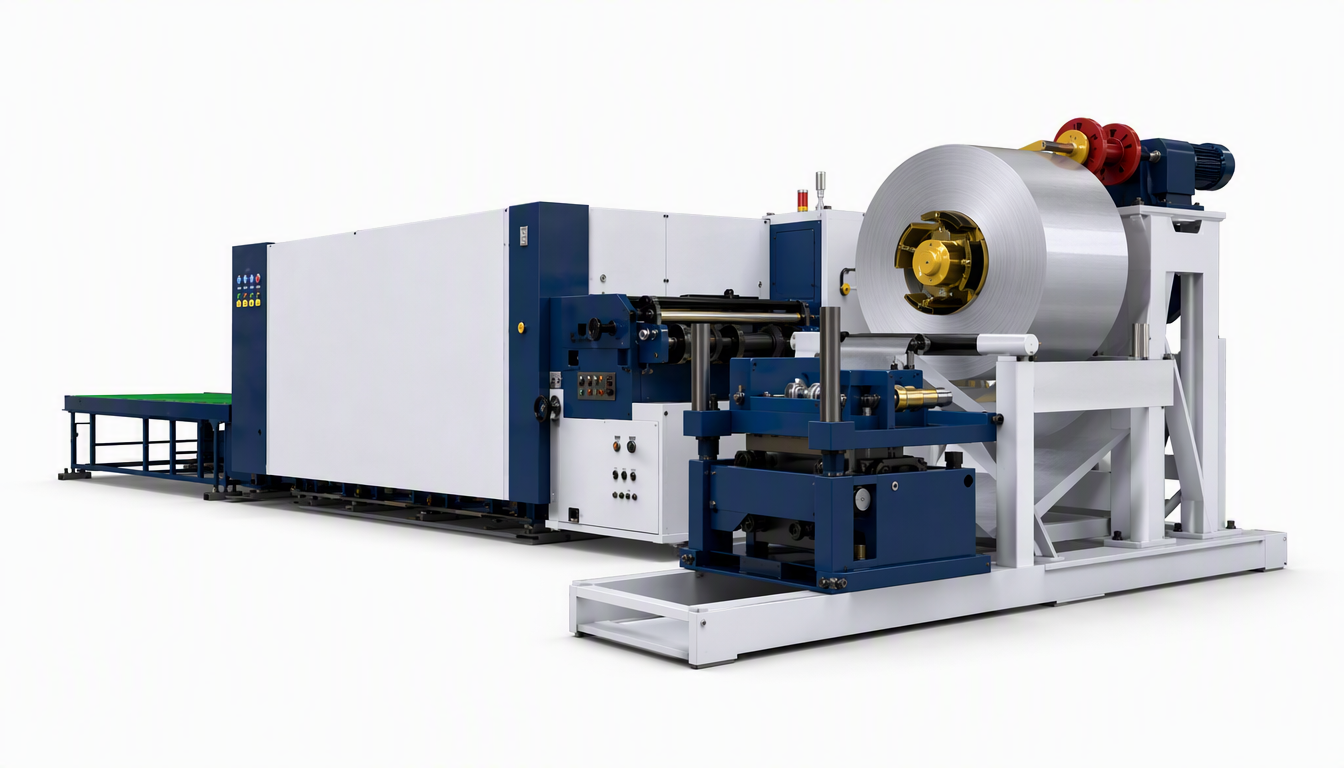

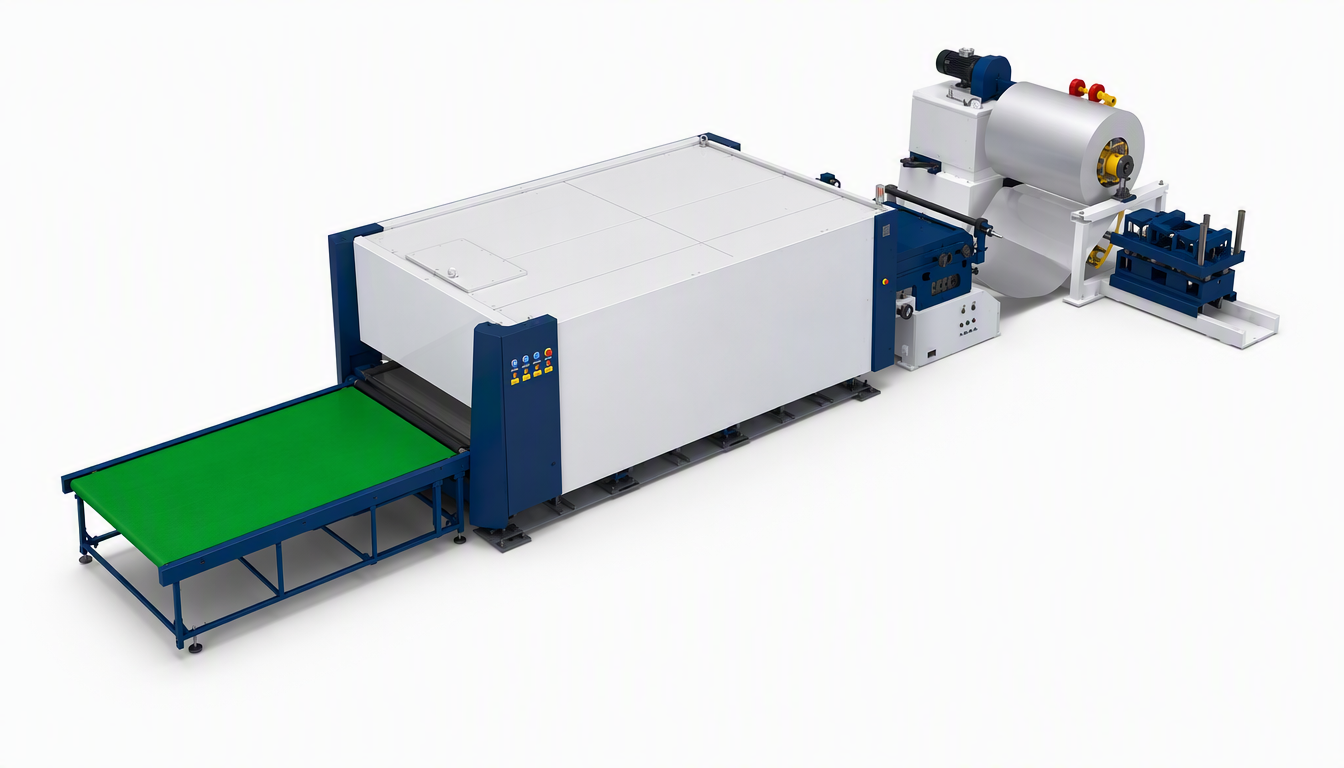

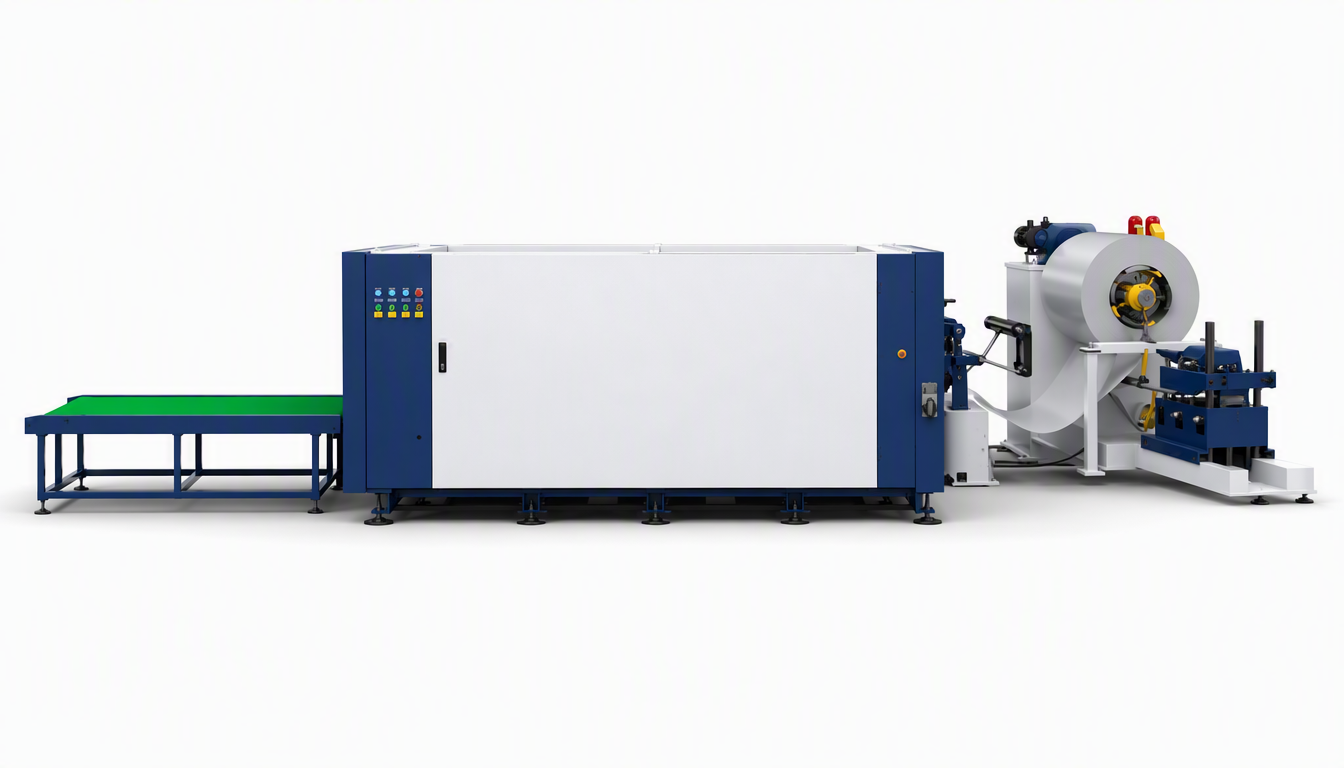

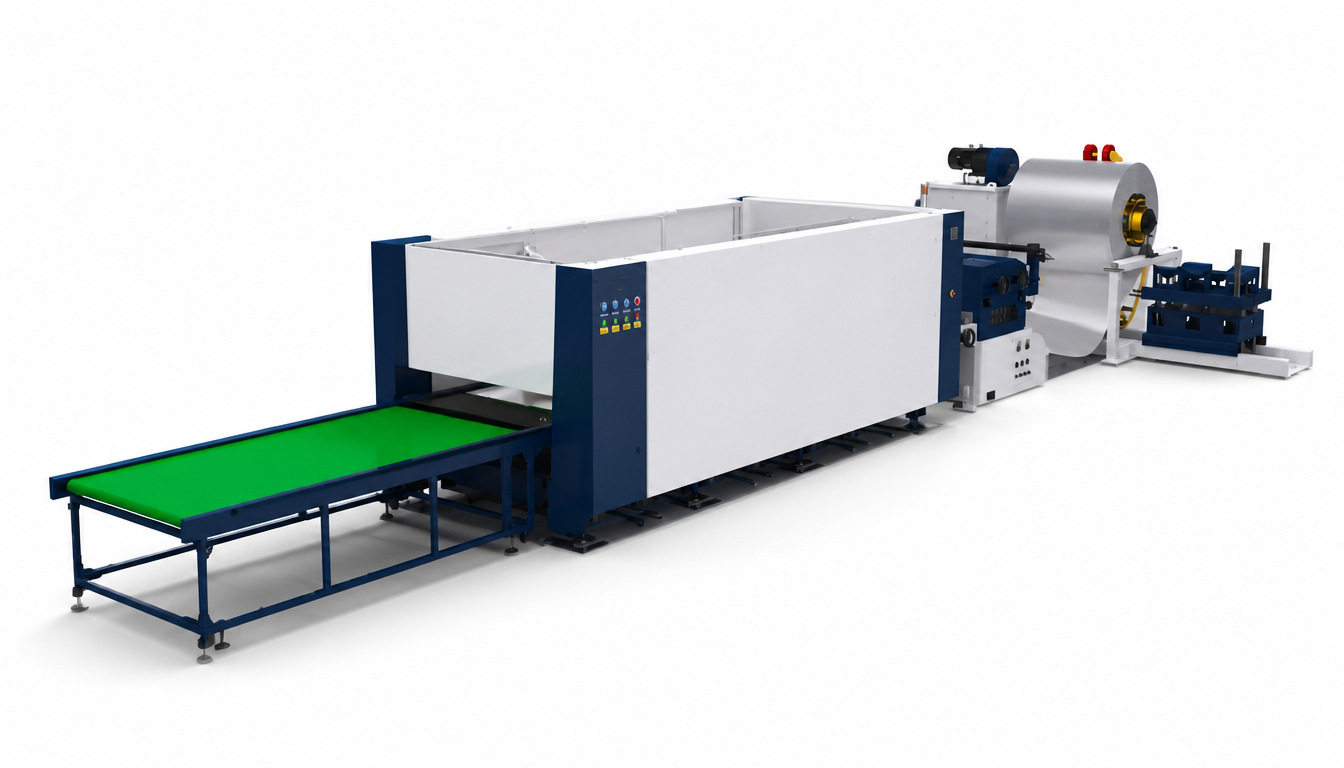

The SV-JD3015 is a complete coil-to-part production line. Uncoiling, levelling, servo feeding, laser cutting and unloading or recoiling are integrated into one continuous process, so steel coil is converted into finished blanks in a single pass. Static and flying cutting modes combined with intelligent nesting make it a direct replacement for stamping and shearing lines where tooling lead time and inflexibility have become the bottleneck.
Specifications
| Line model | SV-JD3015 |
| Working area | 3000×1500mm (customisable) |
| Coil width | 700–2000mm |
| Cut length range | 3000–7000mm |
| Laser power | 1500W / 2000W / 3000W / 6000W (optional) |
| Repeated positioning accuracy | ±0.02mm/m |
| Cutting modes | Static cutting and flying (follow-up) cutting |
| Line composition | Loader, uncoiler, precision six-roll skin pass mill, laser cutting host, unloading unit, electrical control system |
| Scrap handling | Automatic scrap collection and sorting platform |
| Nesting | Visual nesting with intelligent algorithm |
| Worktable | Rolling worktable with optimised support-bar structure |
| Power supply | 380V, 50Hz/60Hz |
Key Features
- ✓Coil to finished product in one step — integrates uncoiling, levelling, feeding, laser cutting and unloading or recoiling.
- ✓Automatic uncoiler with precision leveller — a precision six-roll skin pass mill ensures flatness before cutting.
- ✓Servo feeding mechanism — accurate, repeatable material advance.
- ✓Static and flying cutting modes — flying (follow-up) cutting keeps the line moving for higher throughput.
- ✓Automatic scrap collection and sorting platform — keeps the line running without manual clearing.
- ✓Visual and intelligent nesting — maximises coil utilisation across the run.
- ✓Rolling worktable with optimised support-bar structure — keeps material flat through the cutting zone.
- ✓No tooling required — removes mould development lead time and gives full design flexibility.
Applications
Industries: home appliance manufacturing, kitchen and bathroom, metal furniture, electrical cabinets and distribution equipment, automotive components, shelving and storage systems, building materials, coil service centres.
Materials: carbon steel, stainless steel, galvanised and aluminium coil.
Typical parts: high-volume flat blanks, panels and repeat parts previously produced by stamping or shearing.
