Sheet & Tube Integrated
One fully enclosed machine cuts both flat sheets and tubes — lower capital cost, wider part range.
Overview

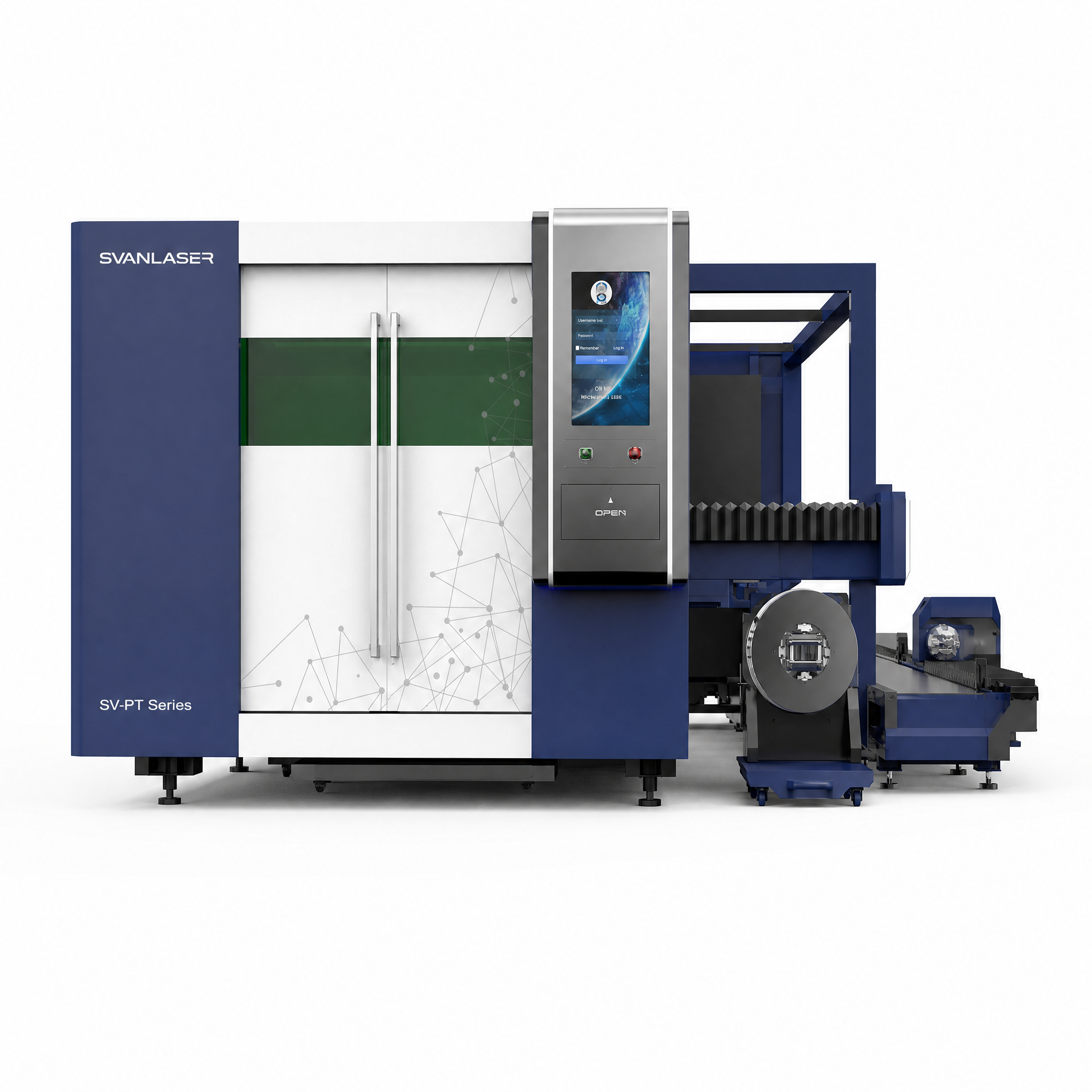

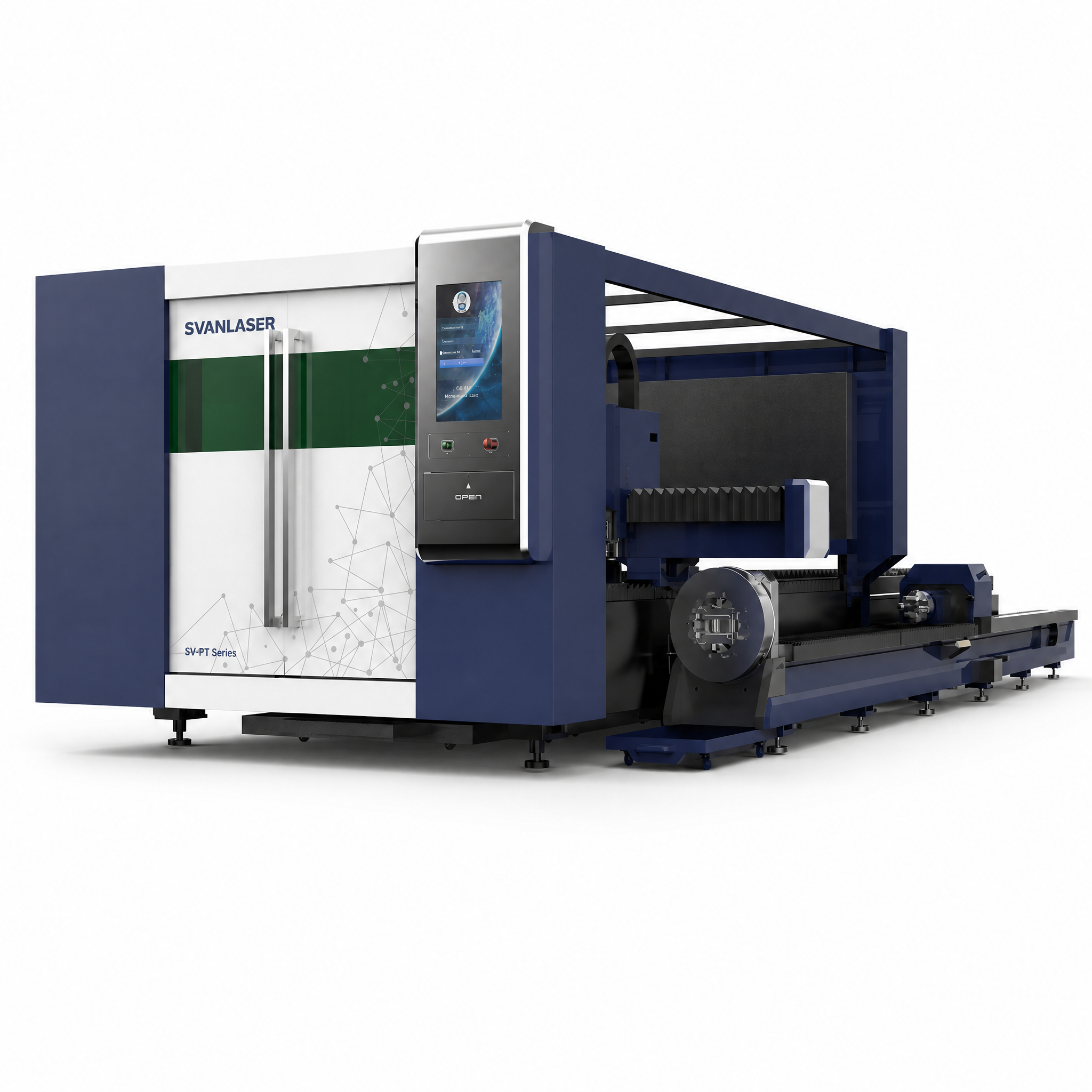

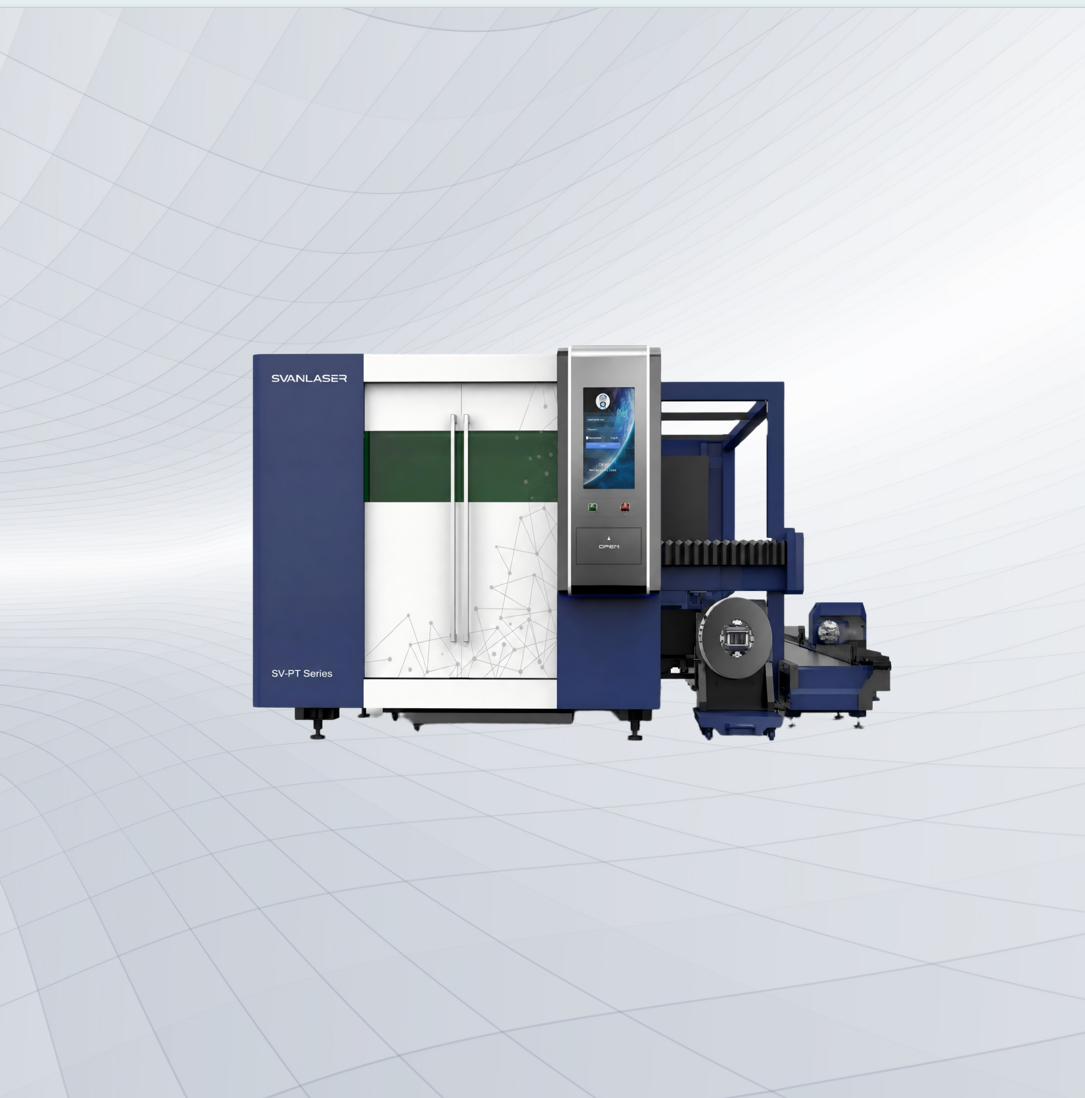

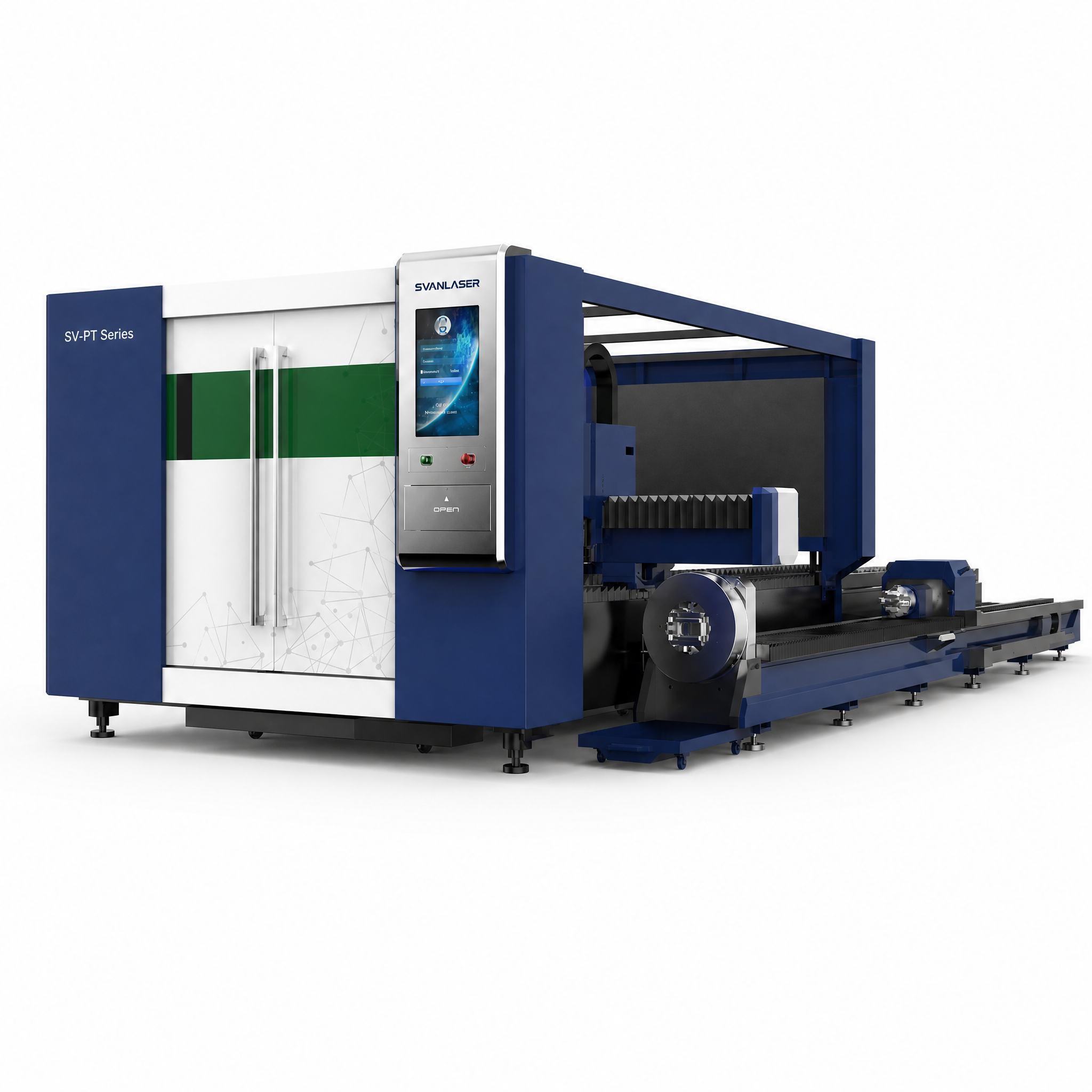

The SV-PT Series cuts both metal sheets and metal tubes on one fully enclosed platform. Dual workstations keep production running without stopping for changeover, and a dedicated fully automatic dual pneumatic chuck handles tube work with stable clamping and short tail material. For fabricators who need both processes, it removes the cost and the floor space of a second machine and shortens the payback period.
Specifications
| Machine model | SV-D3015PT6 / SV-D4020PT6 |
| Working area (sheet) | 3000×1500mm / 4000×2000mm (customisable) |
| Laser power | 1500W / 2000W / 3000W (SV-D3015PT6); 6000W optional (SV-D4020PT6) |
| Pipe diameter | 20–220mm |
| Pipe length | 6000mm (customisable) |
| Repeated positioning accuracy | ±0.02mm/m |
| Chuck | Dedicated fully automatic dual pneumatic chuck, self-centering |
| Worktable | Dual workstations |
| Machine structure | Gantry dual-drive, fully welded base, gear and rack transmission |
| Enclosure | Fully enclosed body |
| Nesting | Visual nesting with close-fitting function |
| Power supply | 380V, 50Hz/60Hz |
Key Features
- ✓Sheet and tube in one machine — cuts both metal plate and metal tube, lowering equipment investment and factory floor space with a shorter return on investment.
- ✓Dual workstations — continuous operation without downtime, significantly improving production efficiency.
- ✓Dedicated fully automatic dual pneumatic chucks — outstanding clamping force, high-speed running, stable efficiency and accuracy.
- ✓Pneumatic self-centering chuck for tubes — stable clamping with short tailings and high material utilisation.
- ✓Visual nesting with close-fitting layout — saves raw material on sheet work.
- ✓Gantry dual-drive with fully welded base — gear-rack transmission plus world-class CNC and fiber laser source for high-speed, high-precision cutting.
Applications
Industries: general metal fabrication, fitness equipment, furniture and shelving, agricultural and engineering machinery, kitchen and bathroom, advertising and display structures, guardrail and construction hardware, laser job-shop services.
Materials: carbon steel, stainless steel, aluminium alloy — sheet, round tube and square tube.
Typical parts: frames combining plate and tube, shelving structures, equipment housings with tubular supports.
