Single Platform E-Type
Compact E-type single-platform entry cutter — small footprint, easy operation, fast return on investment.
Overview

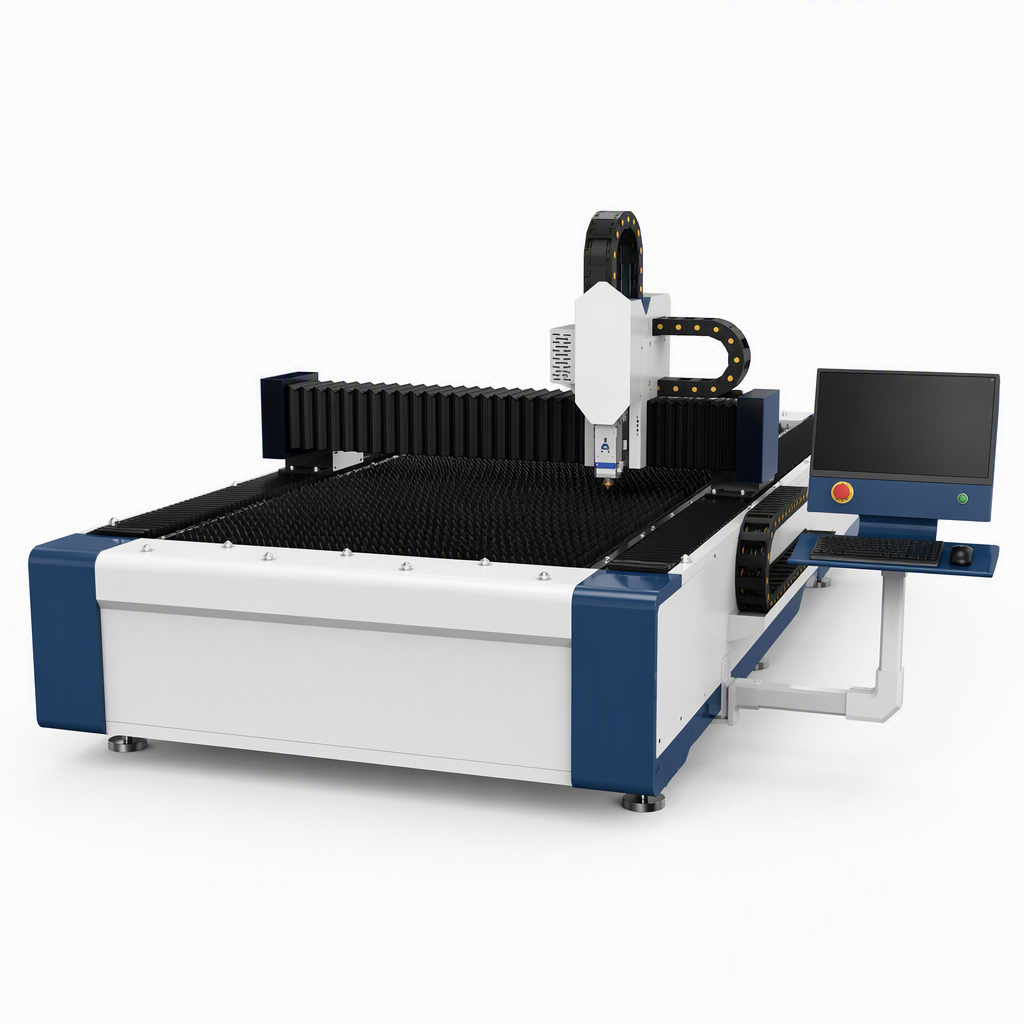

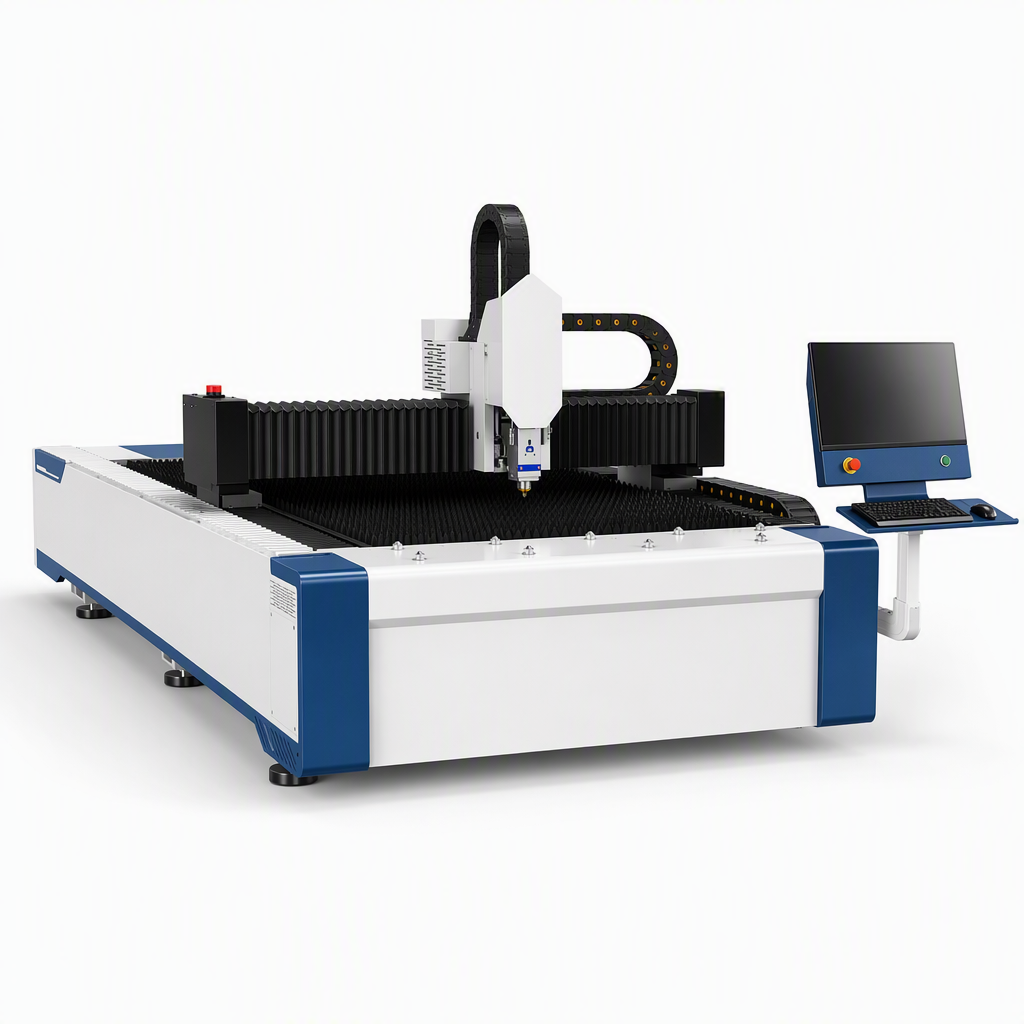

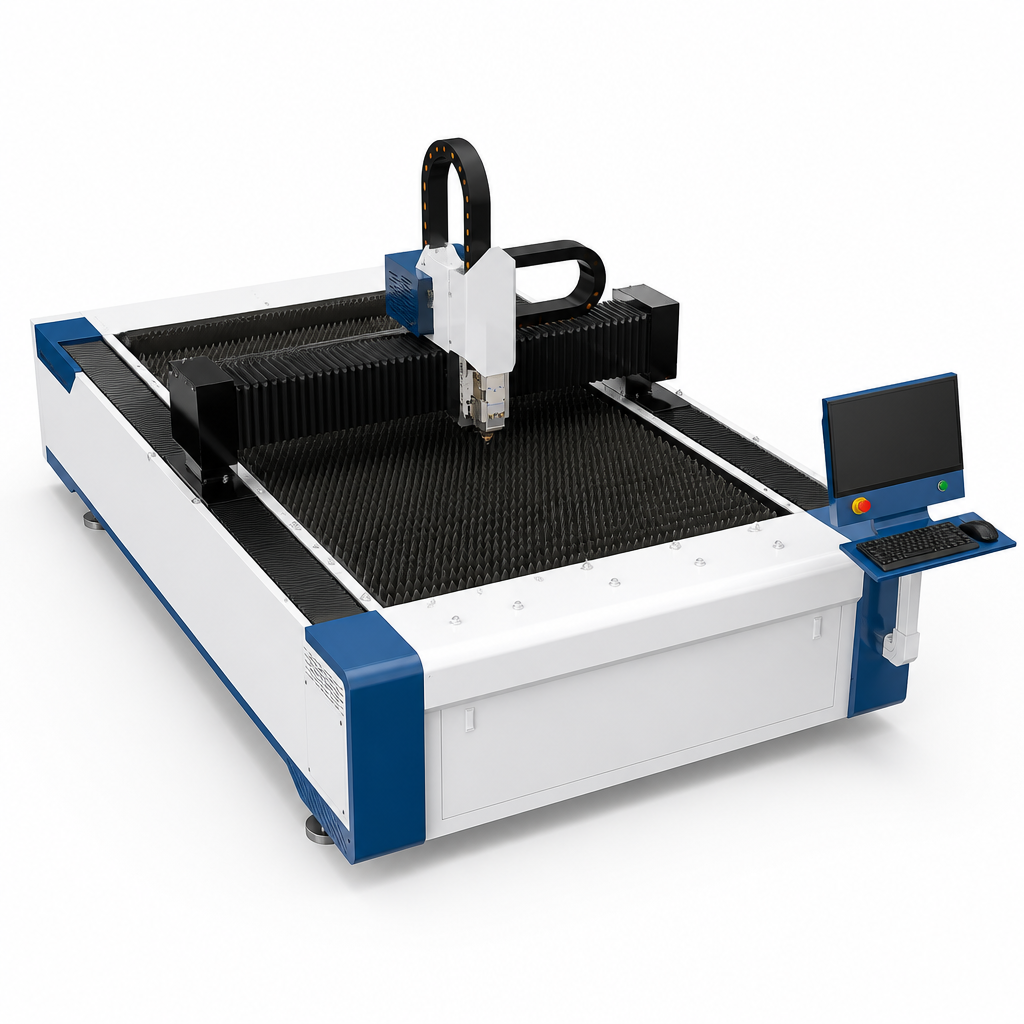

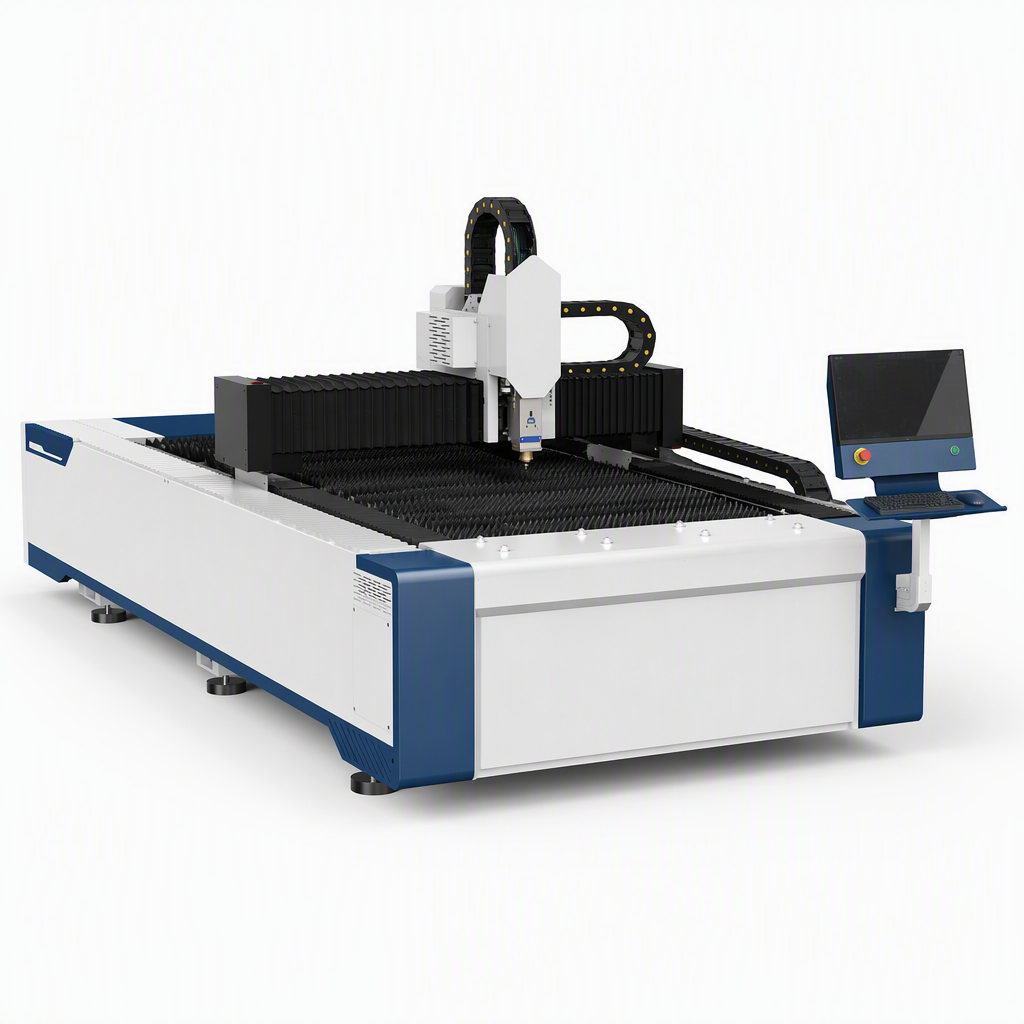

The SV-S Series (E-type) is SVAN’s economical single-platform machine, covering 1500W to 12000W. Its upgraded high-strength hollow frame uses a through-beam mortise-and-tenon structure that addresses bed deformation and unstable machining at the source, while high-intensity intelligent zoned and segmental ventilation keeps heat and dust away from both the operator and the frame. It delivers the same ±0.02mm/m accuracy class as the higher series, making it the practical choice for small and mid-sized fabricators.
Specifications
| Machine model | SV-S3015E / SV-S4020E / SV-S6020E / SV-S6025E |
| Working area | 3000×1500mm / 4000×2000mm / 6000×2000mm / 6000×2500mm (customisable) |
| Laser power | 1500W / 3000W / 6000W / 12000W (optional) |
| Repeated positioning accuracy | ±0.02mm/m |
| Frame structure | High-strength hollow frame, through-beam mortise-and-tenon |
| Ventilation | High-intensity intelligent zoned and segmental extraction |
| Worktable | Single platform |
| Nesting | Visual nesting |
| Power supply | 380V, 50Hz/60Hz |
Key Features
- ✓Through-beam mortise-and-tenon hollow frame — an upgraded high-strength body that resolves machine deformation and unstable machining, improving structural integrity and service life.
- ✓High-intensity intelligent zoned and segmental ventilation — efficient extraction of fumes and dust for a healthier, more environmentally friendly workshop.
- ✓Reduced thermal and dust load on the frame — protects long-term running accuracy and keeps performance at its best.
- ✓Full size range — four standard working areas up to 6000×2500mm, customisable.
- ✓±0.02mm/m repeated positioning accuracy — the same accuracy class as the high-power series.
- ✓Visual nesting — improves material utilisation on every job.
Applications
Industries: small and medium sheet metal shops, hardware and metal products, advertising and signage, kitchen and bathroom, furniture and home furnishings, electrical enclosures, fitness equipment, general metal processing services.
Materials: carbon steel, stainless steel, galvanised sheet, aluminium.
Typical parts: thin-to-medium sheet parts, signage, brackets, enclosures, decorative components.
