Three-Chuck Pipe Cutter
Three-chuck structure with almost zero tailstock — cut complex round, square and rectangular profiles waste-free.
Overview

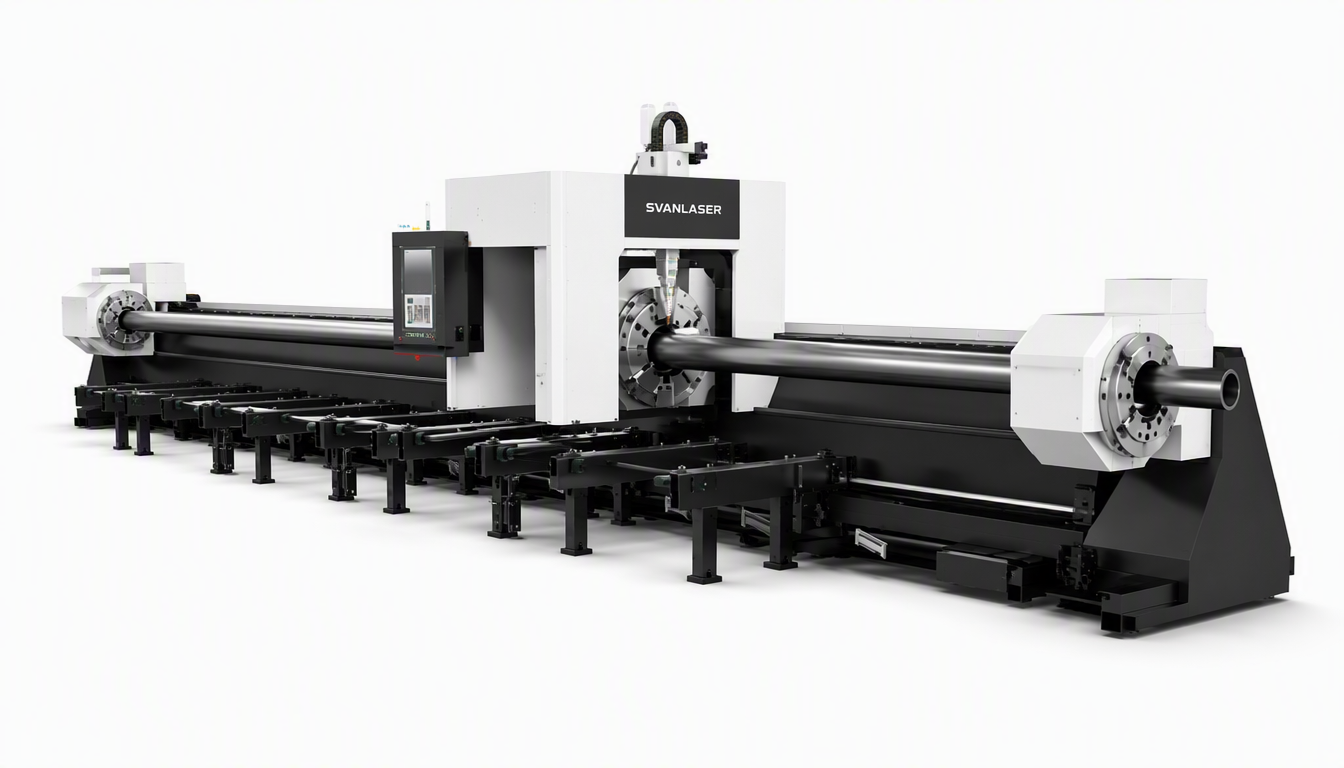

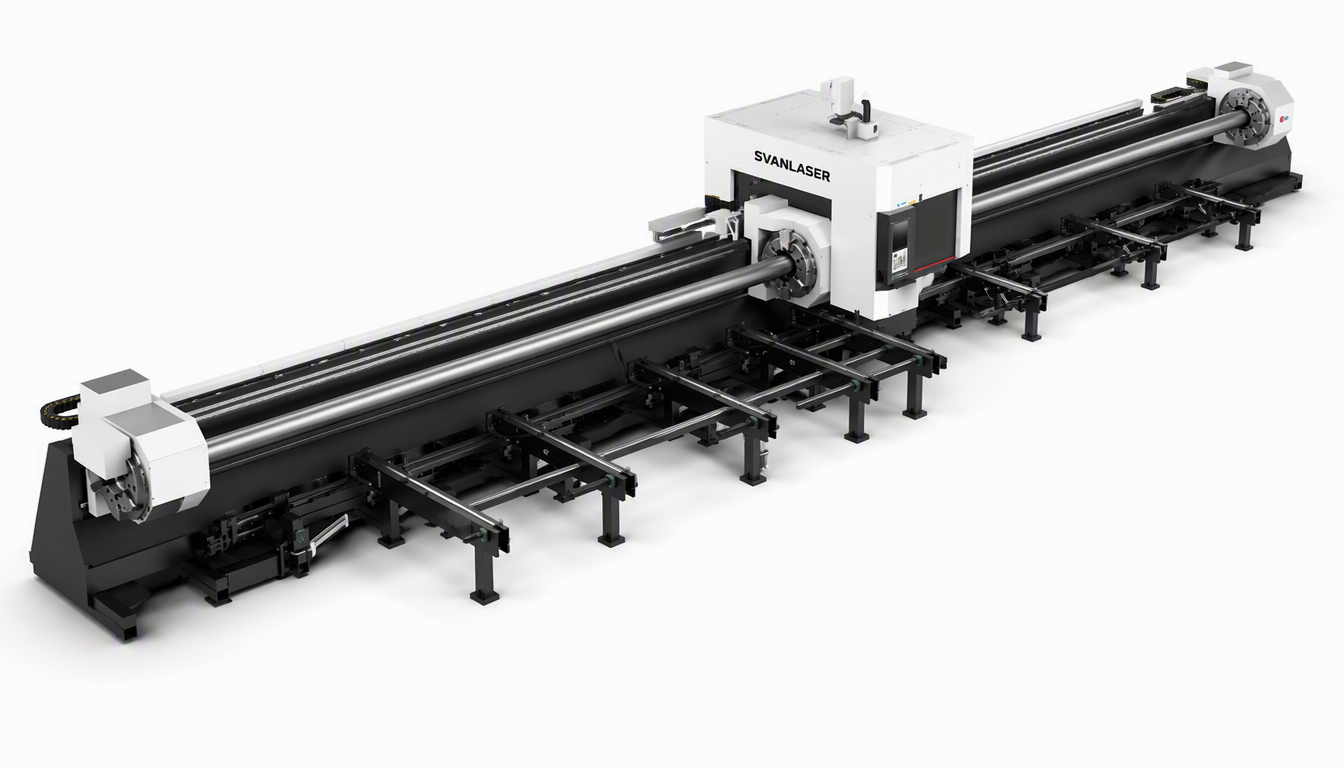

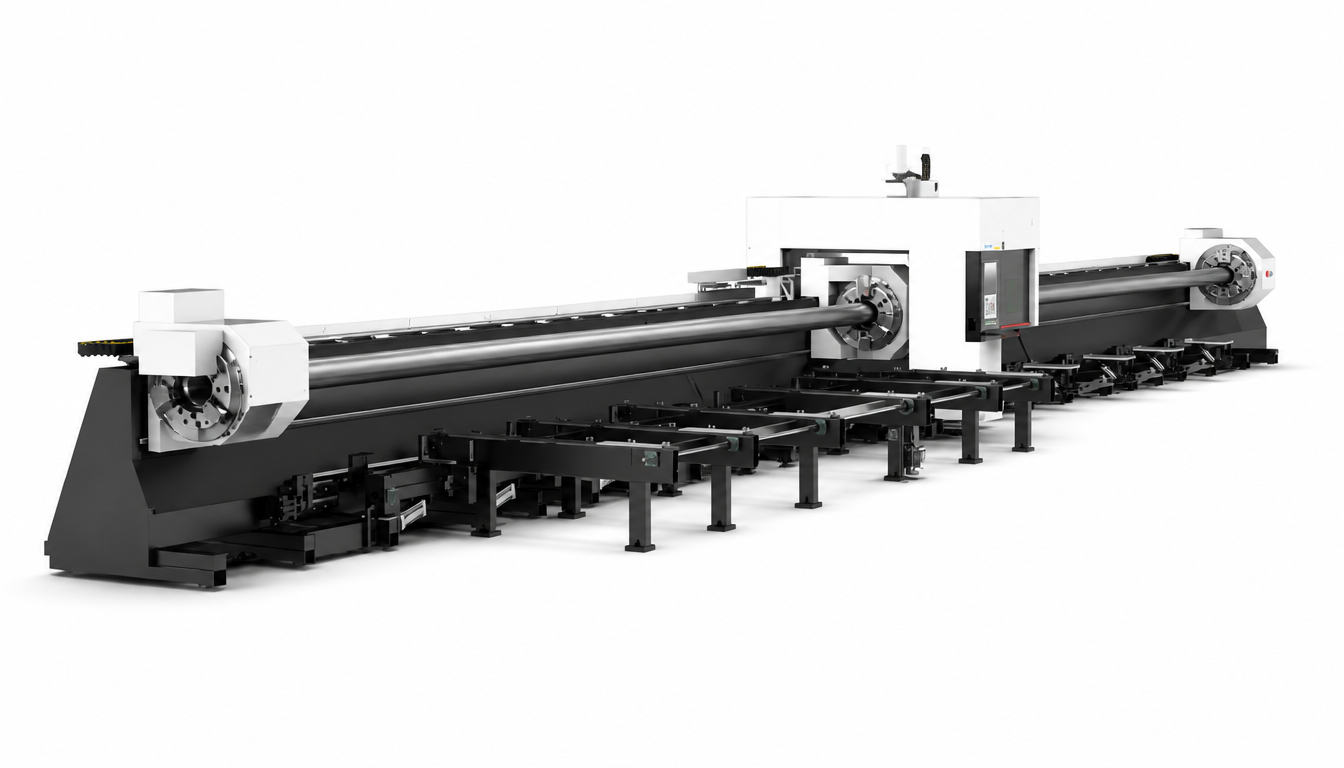

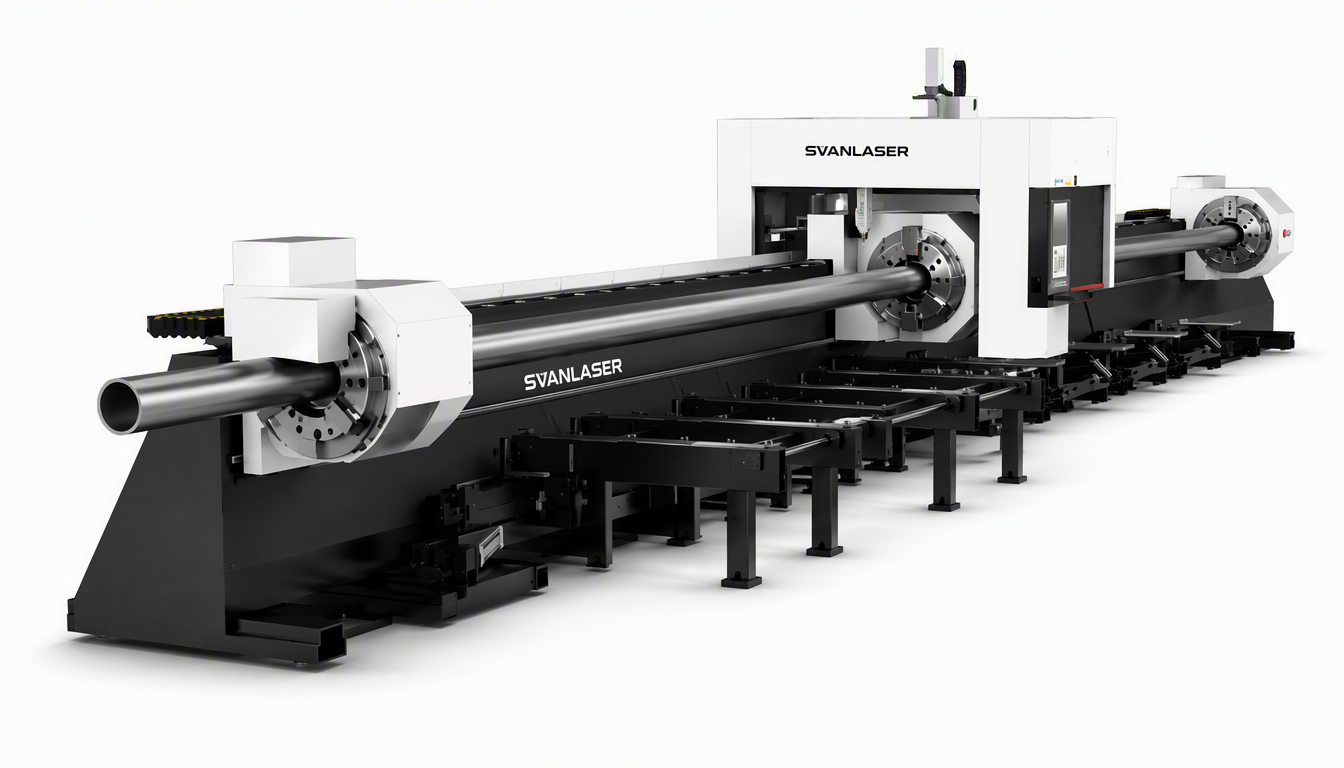

The SV-P Series is SVAN’s high-power long-pipe platform. A three-chuck layout with three-jaw synchronous clamping holds round, square and special-shaped tubes securely along their whole length, while tail-free cutting at both ends keeps material waste to a minimum. With 6000W and 12000W options and machinable lengths of 6500mm, 9200mm and 12200mm, it is built for steel structure work and large-diameter pipe production.
Specifications
| Machine model | SV-P6026 / SV-P6035 |
| Laser power | 6000W (SV-P6026) / 12000W (SV-P6035) |
| Round tube diameter | 20–260mm (SV-P6026) / 20–350mm (SV-P6035) |
| Square tube size | 20–260mm (SV-P6026) / 20–350mm (SV-P6035) |
| Max. machinable pipe length | 6500mm / 9200mm / 12200mm (customisable) |
| Chuck configuration | Three chucks, three-jaw synchronous clamping, fully sealed dust-proof |
| Cutting mode | Tail-free cutting at both ends, overtravel cutting |
| Long-pipe support | Auxiliary supports between chucks |
| Unloading | Follow-up unloading system with real-time tracking |
| Loading | Semi-automatic, or fully automatic with rack and intelligent sorting |
| Power supply | 380V, 50Hz/60Hz |
Key Features
- ✓Three-jaw synchronous clamping — a firm grip without slipping, suitable for round, square and special-shaped tubes.
- ✓Three-chuck layout with auxiliary supports — supports between the chucks guarantee cutting accuracy on very long pipes.
- ✓Tail-free cutting at both ends — maximises utilisation of expensive long tube.
- ✓Fully sealed dust-proof chucks — no lag, overtravel cutting capability and longer service life.
- ✓Follow-up unloading system — tracks the pipe end in real time and receives finished parts automatically, preventing sagging, collision, scratching and cutting deviation.
- ✓Wide clamping range with smooth running — no vibration, burr-free cut faces.
- ✓Semi-automatic or fully automatic loading — configured to batch size and manning level.
Applications
Industries: steel structure and construction, scaffolding, agricultural and engineering machinery, fitness equipment, furniture and shelving, automotive and motorcycle parts, guardrails and municipal facilities, pipe processing services.
Materials: carbon steel, stainless steel, aluminium alloy pipe — round, square, rectangular and special-shaped sections.
Typical parts: long structural pipes, truss members, frame tubes, large-diameter pipe assemblies.
