Compact Manual Tube Cutter
Compact manual-load tube cutter for light-duty and short-run tube cutting.
Overview

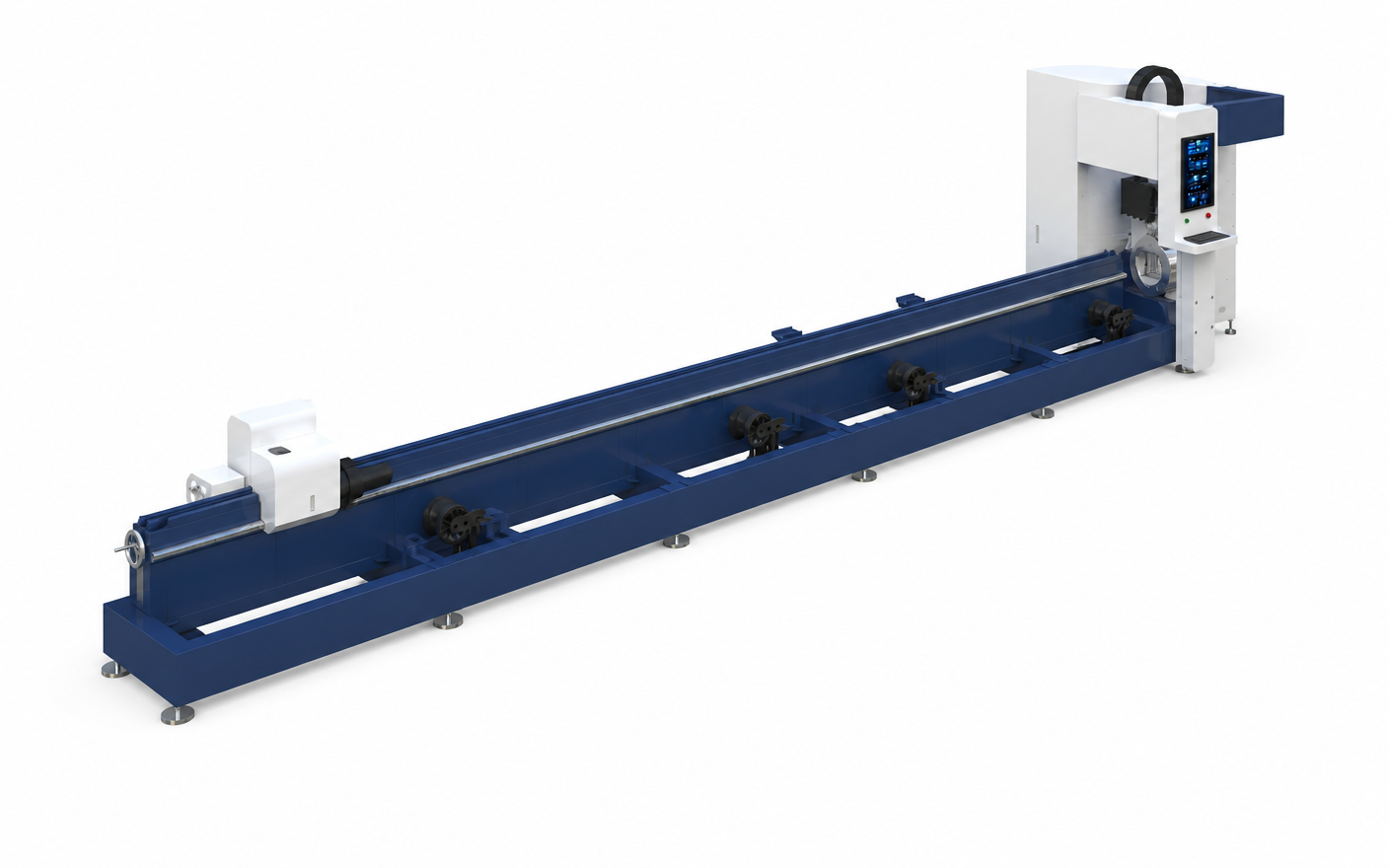

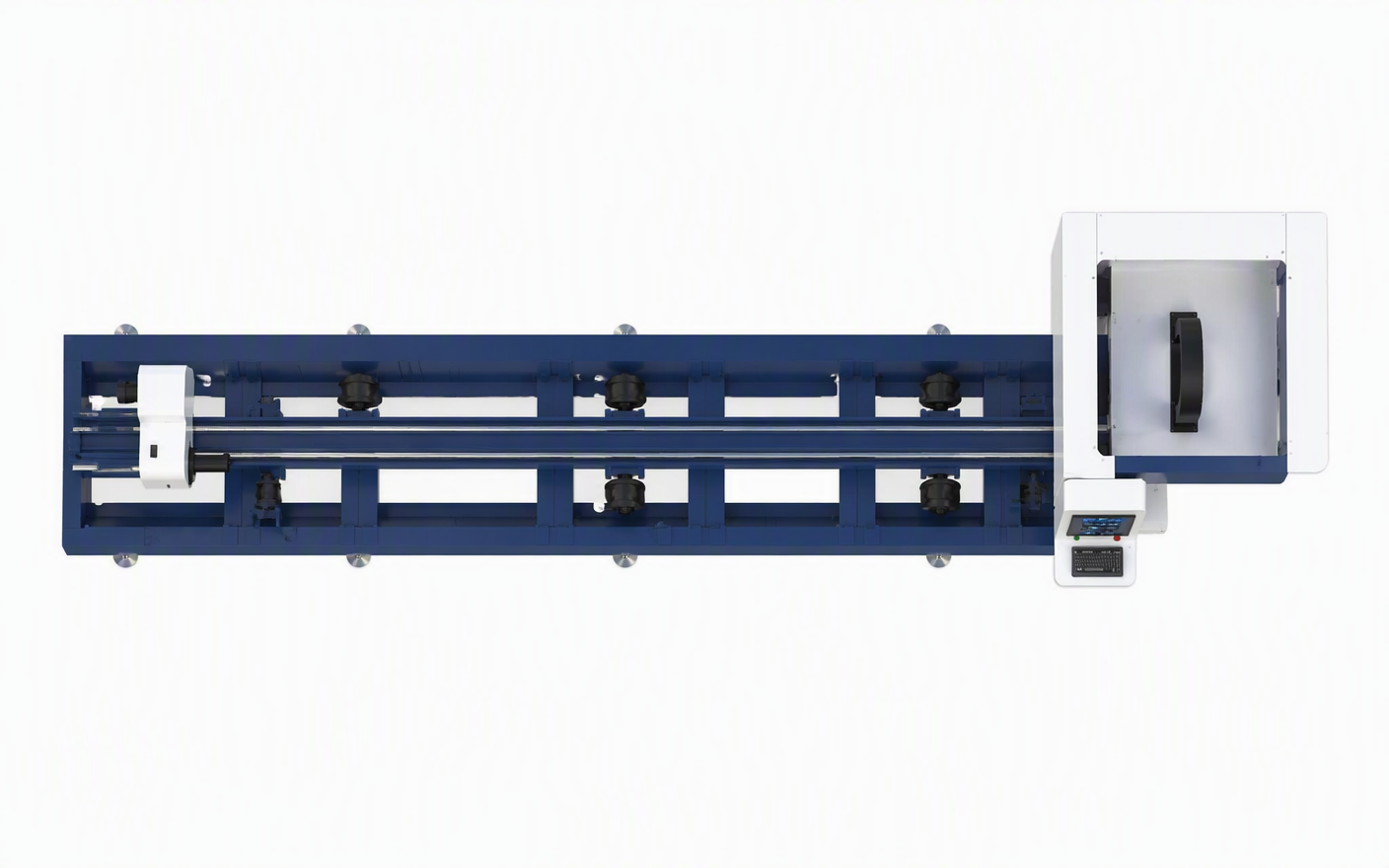

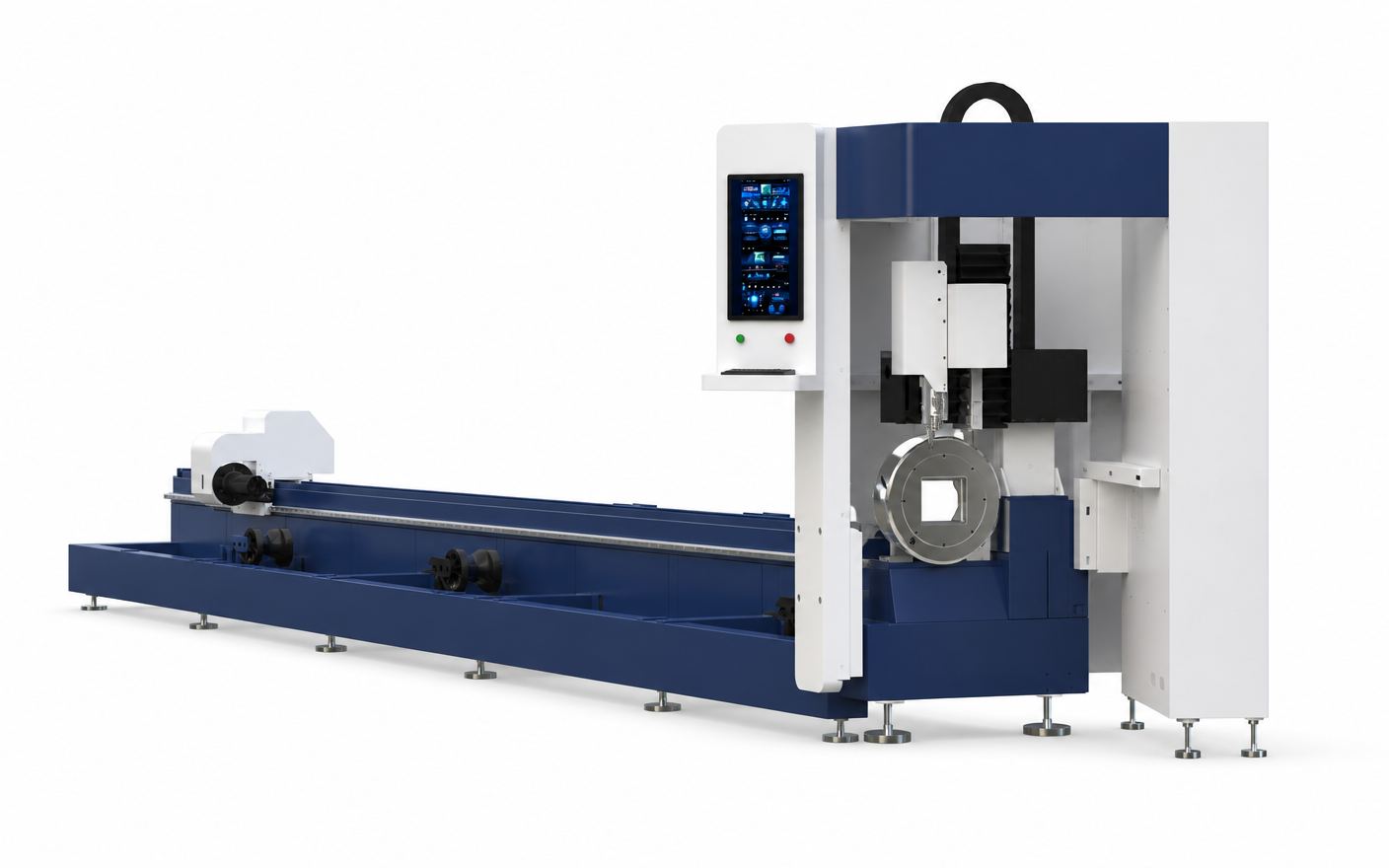

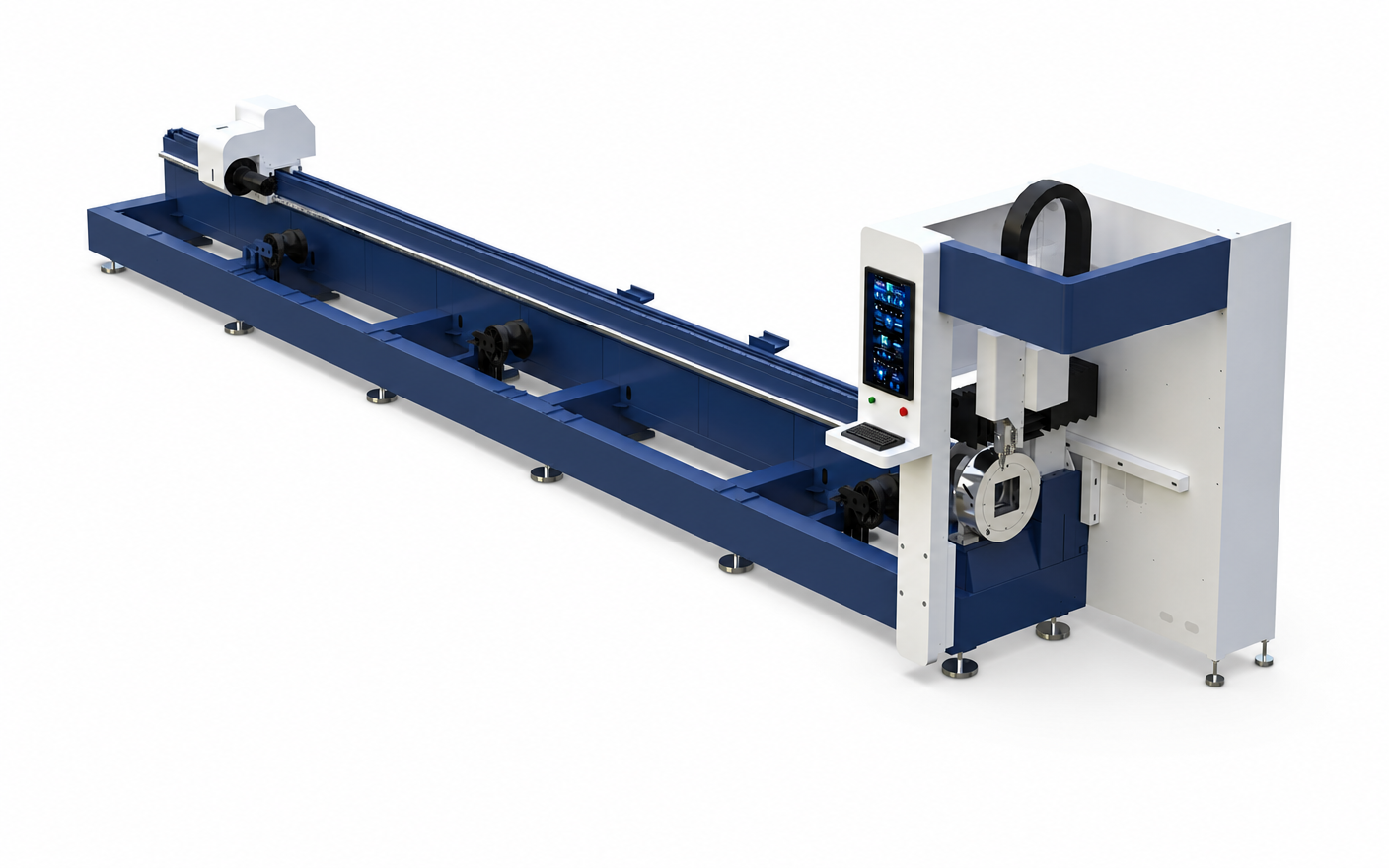

The SV-PEM is the entry configuration of the PE family — the same heavy-duty integrated chuck platform and long-pipe support structure, supplied without the automatic loading rack. It suits buyers who want the PE cutting platform now and intend to add automation as volumes grow.
Specifications
| Machine model | SV-PE6012M / SV-PE6022M |
| Laser power | 1500W / 2000W / 3000W / 6000W (optional) |
| Round tube diameter | 20–350mm |
| Square tube size | 20–220mm |
| Pipe length | 6000mm (customisable) |
| Repeated positioning accuracy | ±0.02mm |
| Chucks | Integrated, fully sealed dust-proof front and rear |
| Long-pipe support | Auxiliary supports between chucks |
| Loading method | Manual placement |
| Power supply | 380V, 50Hz/60Hz |
Key Features
- ✓Integrated chuck with powerful clamping force — stable pipe fixation throughout the cut.
- ✓Fully sealed dust-proof front and rear chucks — block dust intrusion and greatly extend service life.
- ✓No hysteresis with overtravel cutting — effectively reduces tailing waste and improves material utilisation.
- ✓Auxiliary supports between the two chucks — guarantee cutting precision on long pipes.
- ✓Upgradeable within the series — semi-automatic or fully automatic loading can be added later.
Applications
Industries: small-batch pipe fabrication, hardware and metal products, furniture and shelving, general machinery, job-shop tube cutting.
Materials: carbon steel, stainless steel, aluminium alloy — round, square and rectangular tube.
Typical parts: varied small-batch tube parts, prototype and short-run structural tube.
